Pt Arena Glider Line 56.7

Current Glider Position

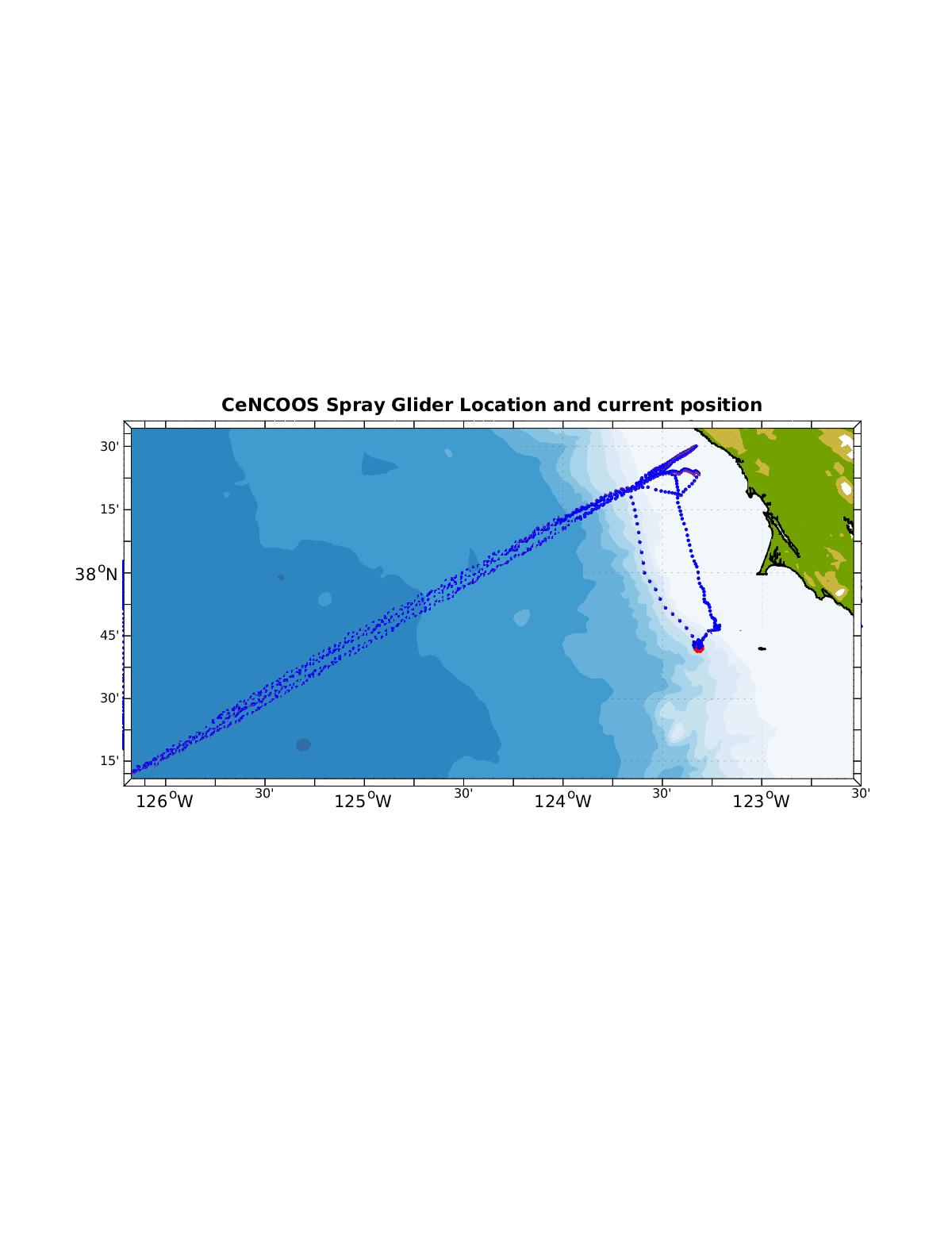

Current Glider Track and Position

Track (blue line) and current location (red dot)

A glider continuously transects CalCOFI Line 56.7 between Pt. Arena and 500 km offshore to the southwest. Gliders have been collecting observations along this track since 2019. The map on the right shows the current location of the active glider.The active mission data is plotted below and data from both the active and completed missions is available for download.

Active Mission Plots

Plot Details: The contour plots below are updated every 4 hours and display water temperature, salinity, chlorophyll flourescence and acoustic backscatter from the surface to 500 meters depth. The top plot for each variable is the most recent glider transect. The dates on the top axis of plot provide a reference to the start and end time of that stretch of data. The x-axis on each plot represents the distance along the track and indicate the glider’s direction (towards or away from shore). Learn more about how to interpret glider contour plots

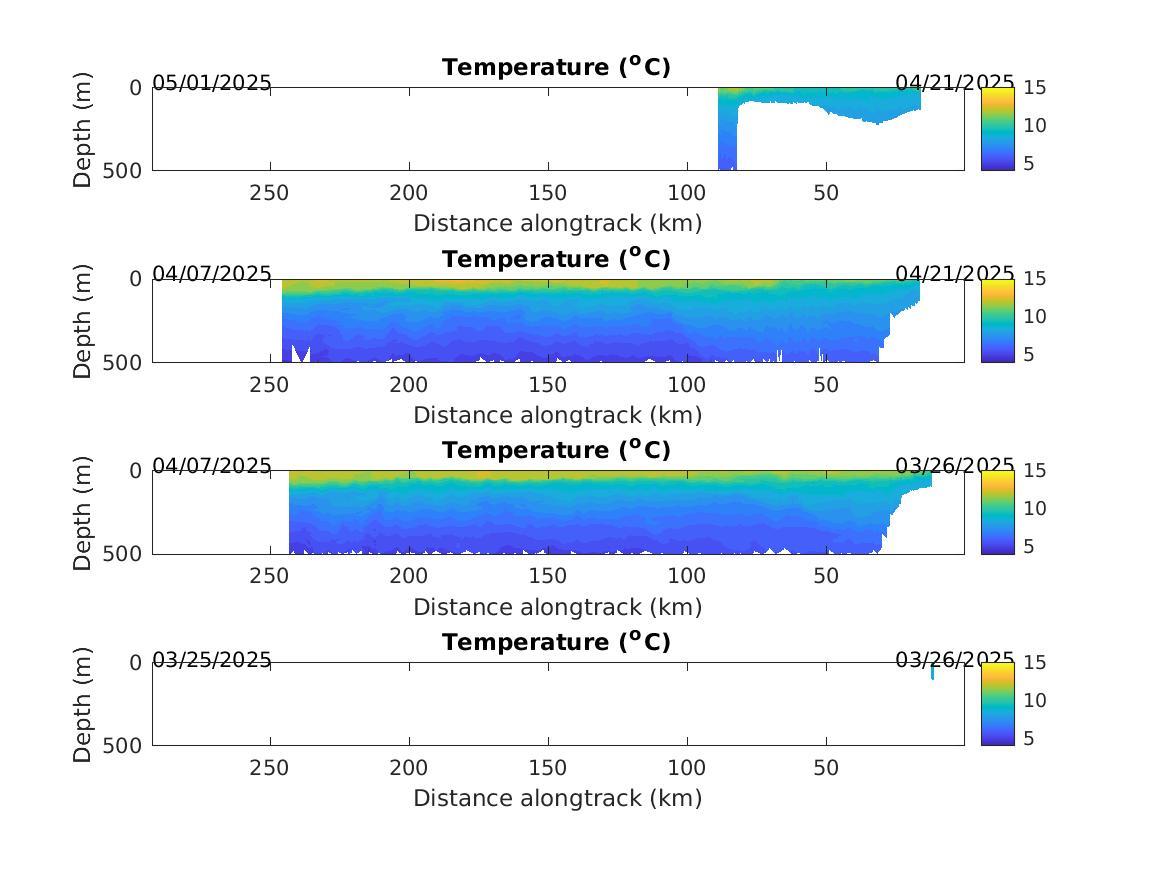

Temperature – Most Recent Transects

Spray Glider Temperature Contours

Salinity – Most Recent Transects

Spray Glider Salinity Contours

Fluorescence – Most Recent Transects

Spray Glider Fluorescence Contours

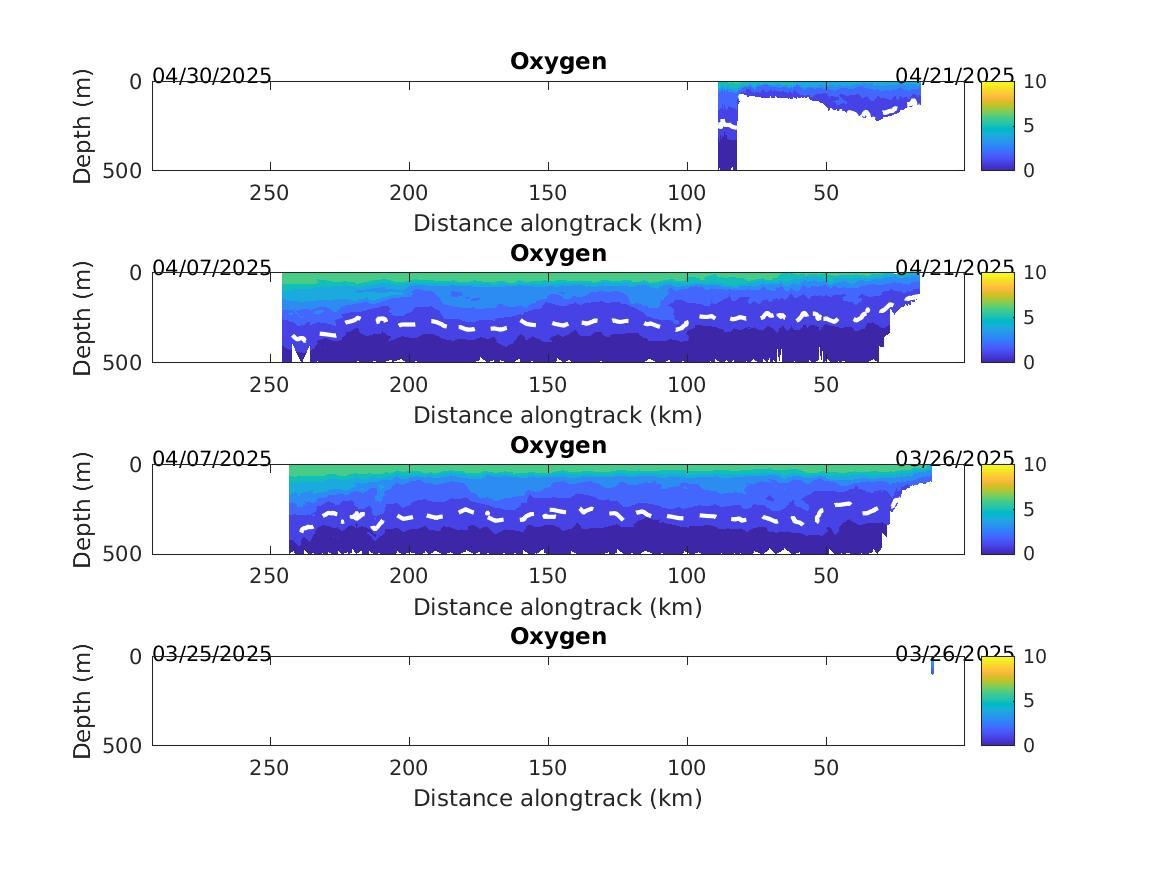

Dissolved Oxygen (ml/L) – Most Recent Transects

The white line on the plots is the 1.4 ml/L contour. Water below this contour could be considered Hypoxic.

Spray Glider Dissolved Oxygen Contours

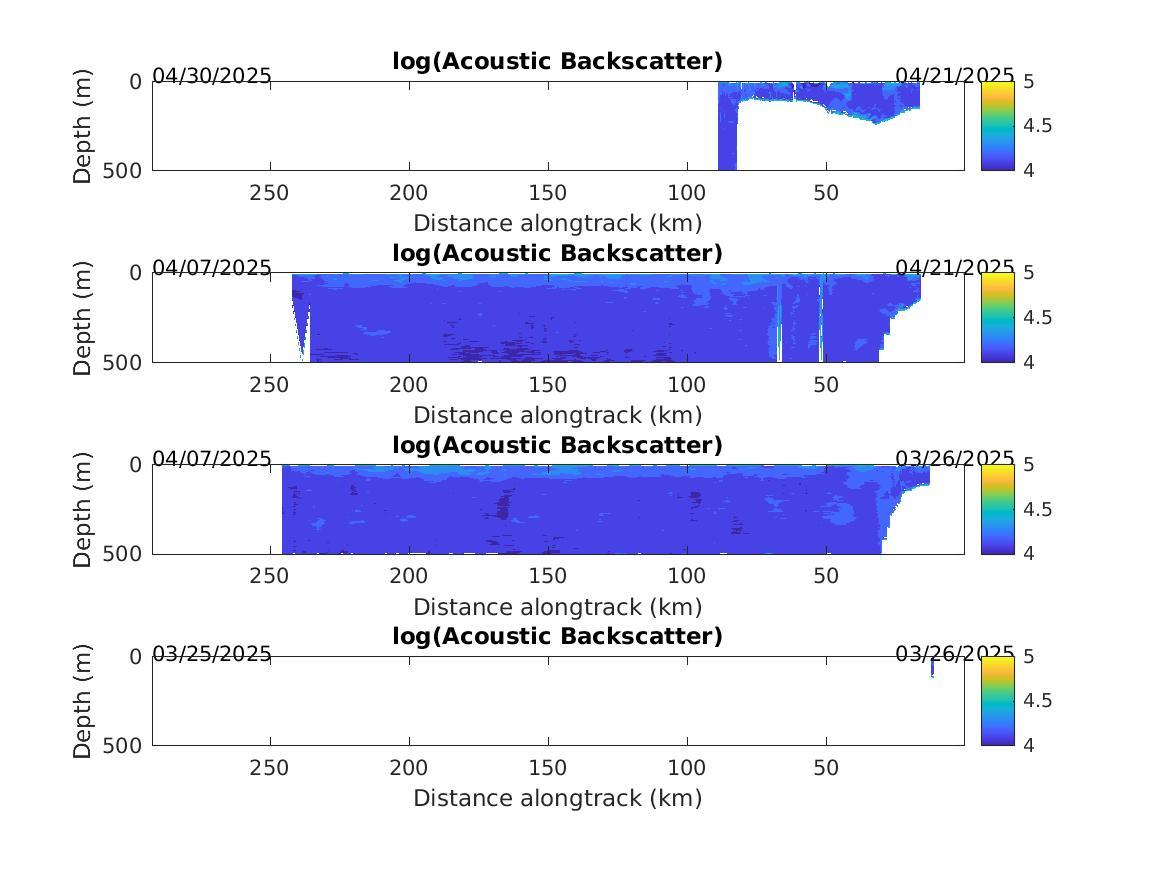

Acoustic Backscatter – Most Recent Transects

Spray Glider Backscatter Contours

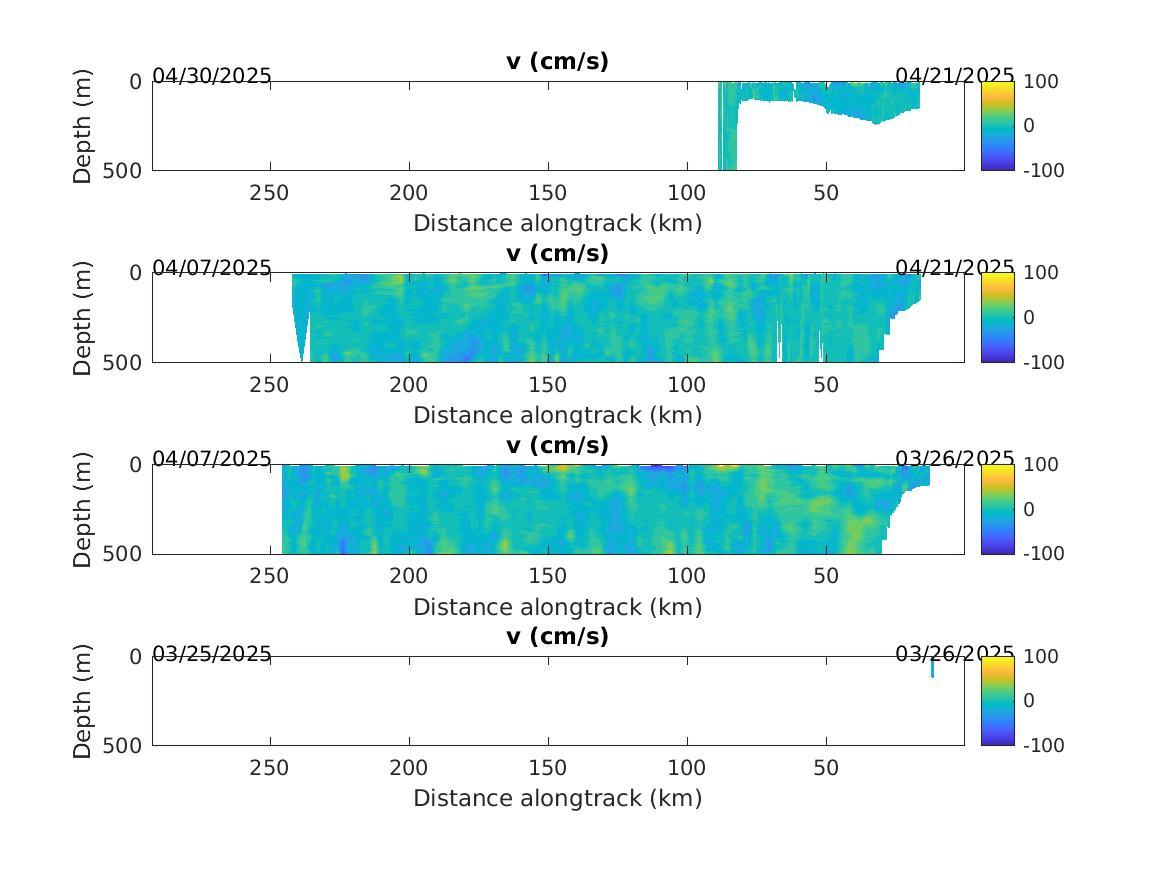

North-South Velocity Component – Most Recent Transects

Spray Glider North-South Velocity Component

East-West Velocity Component – Most Recent Transects

Spray Glider East-West Velocity Component

Quiver plot – Most Recent Transects

Quiver plot

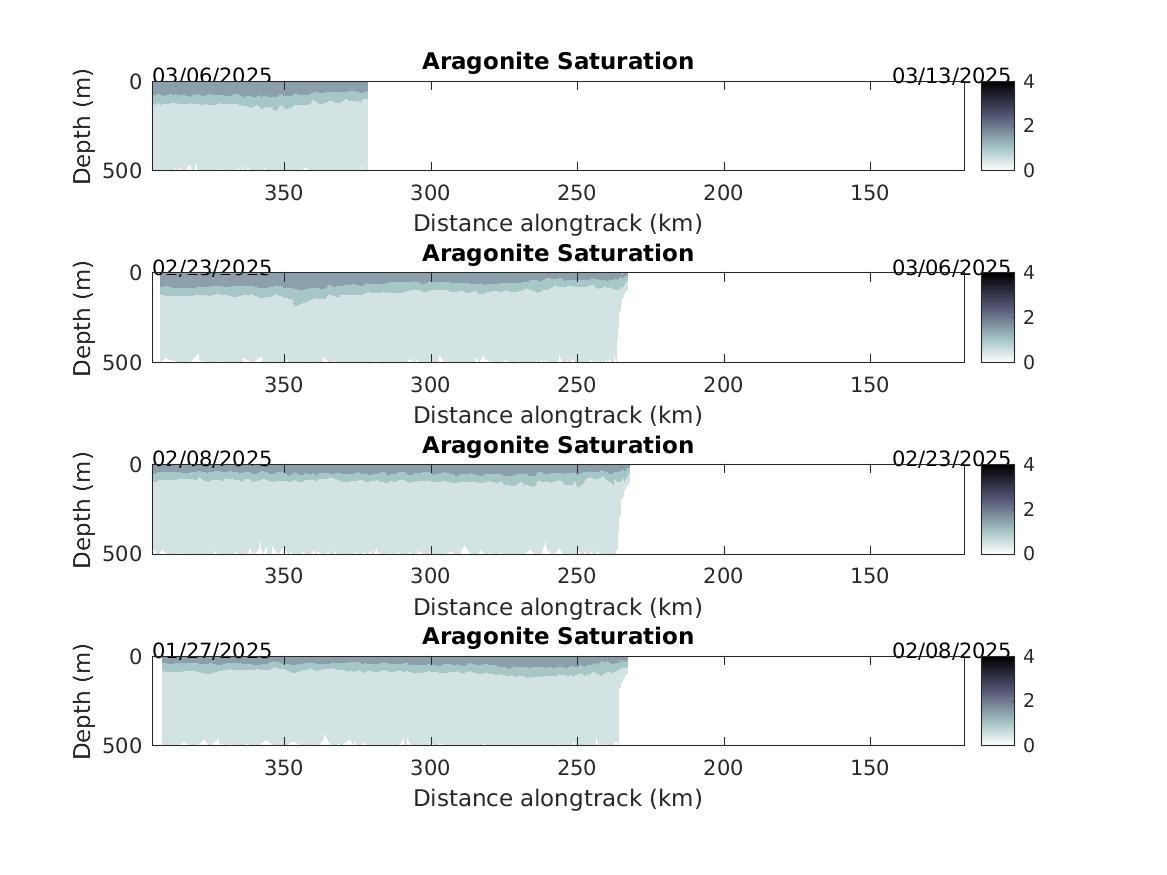

Aragonite Saturation. This is an EXPERIMENTAL product use with CAUTION. Created using Alin et. al. JGR 2012

Aragonite Saturation plot
